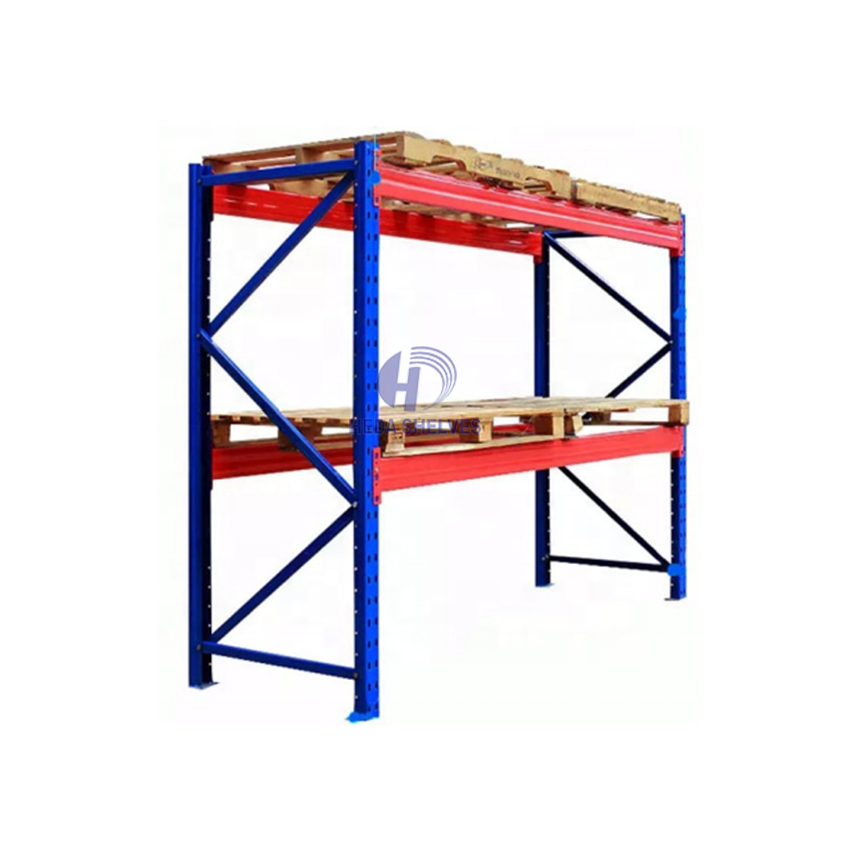

Heavy Duty Pallet Rack Industrial Warehouse Rack System Selective Pallet Racking Shelves Supporting 3 Tons Per Layer

Product Description

Pallet Racking System Banner
Pallet Racking System

The Industrial Pallet Racking System is composed of upright frames, beams, and accessories such as safety pins and foot plates. It is a versatile and widely used storage solution, suitable for storing palletized goods in warehouses, distribution centers, and manufacturing facilities.

1. Robust Structure
Designed for heavy-duty applications with high load capacity and excellent stability.
2. Flexible Configuration
Adjustable beam levels to accommodate various pallet sizes and storage needs.
3. Efficient Space Utilization
Maximizes warehouse storage by optimizing vertical and horizontal space.
4. Compatibility
Suitable for storing different types of goods, including standard pallets, non-standard pallets, and bulk items.
5. Optional Accessories
Available with additional components like wire decking, safety bars, and back mesh for enhanced functionality and safety.
Specification
Pallet Racking Components Diagram
1. Frame
2. Beam
3. Safety locking mechanism
4. Frame union
5. Anchor bolts
6. Levelling shims
7. Upright protector
8. Lateral protection barrier
9. Cross bracing set
10. Top portal tie
11. Pallet cross tie
12. Container support
13. Chipboard shelving cross tie
14. Chipboard or melamine shelf
15. Galvanised picking shelf
16. Mesh shelf
17. Drum support
18. Pallet stop set
19. Anti-fall mesh
20. Raised cross tie
21. Aisle identification plate
22. Signalling plate
Racking Construction Detail 1
Racking Construction Detail 2
Product Description
Product View 1
Product View 2
Product View 3
Product View 4
Product View 5
Product View 6
Racking Installation View
Material Cold-Rolled Steel Q235B
Product Size Length: 2300 / 2500 / 2700 / 3000 / 3300 / 3600 / 3900mm
Width: 800 / 900 / 1000 / 1100 / 1200mm
Height: 2000 ~ 6500mm
(or Customizable)
Thickness column:1.5mm, 2.0mm
(or Customizable)
Load Capacity 1000KG~5000KG per layer
(or Customizable)
Layers 2-5 Adjustable Layers
(or Customizable)
Color Blue,Orange,Black,White,Grey
(or Customizable)
Surface Electrostatic Spray Surface
Feature Anti-rust, Corrosion-protection
Guarantee Period 5 Years Warranty
Remark OEM & ODM Accepted
Relevant Certificate CE,BV,ISO9001
Use Area Warehouse, Factory, Storage Place
Structure Knock Down Structure, Easy Assembling, Convenient For Delivery
Function storage goods, rack, storage
Product range warehouse, storage place
3D Drawing & Floor Plan Design
3D Racking Layout Design 1
3D Racking Layout Design 2
Racking Floor Plan 1
Racking Floor Plan 2
Racking Load Testing
Racking Component CAD Design
Successful Cooperation Cases
Cooperation Project Case 1
Cooperation Project Case 2
Cooperation Project Case 3
Cooperation Project Case 4
Cooperation Project Case 5
Cooperation Project Case 6
Our Factory
Manufacturing Factory Facility
About Us

Established in 2001, we are a trusted leader in the design, manufacturing, and installation of display stands, storage shelves, and supermarket equipment. With a factory spanning over 22,000 square meters and a skilled workforce of 120 employees, we deliver high-quality products at competitive prices to clients around the world. Committed to excellence, we provide tailored warehouse storage solutions designed to optimize space and enhance efficiency for our customers. Guided by the principle of "Focused on Quality & Committed to Service," we aim to be your trusted global partner, delivering exceptional products and services to support your success.

Factory Workshop View 1
Factory Workshop View 2
Our Products

( All products can be customized )

  • Warehouse racking and warehouse equipment: warehouse pallet racking, light medium racking, heavy duty racking, mezzanine floor racking systems and storage pallet racking in warehouses/workplaces, including: cantilever racking systems, drive-in racking systems, wide span shelving, pallets flow rack, carton flow rack, etc.
  • Supermarket shelves, store fixtures and equipment: supermarket gondola shelves, heavy duty gondola shelves, shopping carts, promotional carts, shopping baskets and cashier counters and other supermarket store equipment.
  • Hardware tool display stand, customized metal product display stand, etc. Our products are very popular in Southeast Asia, Japan, America, Canada, Australia and Europe. Over 40% of our annual orders come from repeat customers.
Product Display Racks

High Quality makes us own CE/ISO9001/BV Certification and have gained great credit from our foreign customers. We serve clients with the consistent principle of "Best Quality, Durable Structure, Perfect Design, Punctual delivery and Customer Satisfaction". Our development relies on your active participation and we will make every effort for further development. With your support, we will move forward and further be the perfect shelving manufacturer and your best business partner!

Racking Quality Assurance Certification View
Packing & Delivery
Packing and Delivery Process 1
Packing and Delivery Process 2
Packing and Delivery Process 3
Packing and Delivery Process 4
Frequently Asked Questions
Are you a manufacturer or trading company?
We are a manufacturer. Our factory has been specializing in supermarket shelves, warehouse racks and different kinds of display stands since 2001.
What is your delivery time?
In general, within 15 days. It also depends on the order quantity and shelving design.
What is the term of payment?
Payment terms: 30% of deposit upon signing the PI, and balance will be cleared by T/T before delivery.
Are samples available?
Yes, samples are available at any time. We charge some sample cost and will return it during the next order.
How could I install the racks?
We provide detailed install instruction for every type of shelf. If needed, we can also ask engineers to teach you.
Could you produce according to customers' design?
Sure, we have very rich experience in customizing shelves.
